Network analysis for identifying potential anti-virulence targets from whole transcriptome of Pseudomonas aeruginosa and Staphylococcus aureus exposed to certain anti-pathogenic polyherbal formulations

Introduction

Despite wide recognition of antimicrobial resistance (AMR) as a major global health threat, the progress on discovery and development of new antibiotics in the last three to four decades clearly has fallen short from being satis­factory. For a variety of reasons, for example, lack of interest among major pharmaceutical firms, rapid emergence and spread of resistance among pathogenic bacterial populations, dearth of new validated cellular and molecular targets, the list of effective antimicrobials available for treatment of resistant infections remains short. The status of antibiotic discovery research has been reviewed thoroughly (1,2,3,4). Since most currently available antibiotics target a narrow range of bacterial traits, that is, cell envelope synthesis, protein or nucleic acid synthesis, or folic acid synthesis, a truly new class of antibiotics will be discovered only if we have a longer list of validated targets. Development of new bactericidal antibiotics is not the only way of tackling the slow pandemic of AMR infections; discovery of resistance modifiers and non-antibiotic virulence-attenuating agents can also be of great value (5,6). Hence identification of new potential targets for both bactericidal antibiotics as well as antibiotic adjuvants is useful. There is a clear need for antibiotics with previously unexploited new targets and wide target diversity in the discovery pipeline. One of the major challenges in antibacterial discovery is associated with the proper target selection, for example, the requirement of pursuing molecular targets that are not prone to rapid resistance development (7).

Various public health agencies like CDC (Centers for Disease Control and Prevention, USA), WHO (World Health Organization), and DBT (Department of Biotechnology, India) have published lists of priority pathogens against which novel antimicrobials need to be discovered urgently. Antibiotic-resistant strains of Pseudomonas aeruginosa and Staphylococcus aureus commonly appear on all such lists. As per CDC’s Vital Signs report (https://www.cdc.gov/vitalsigns/index.html) more than 33% of the bloodstream infections in patients on dialysis in the United States in 2020 were caused by S. aureus. This gram-positive human commensal has been recognized as an important opportunistic pathogen responsible for a wide range of infections (8). P. aeruginosa is the primary cause of gram-negative nosocomial infections. Its ability to adapt to a wide range of environmental niches combined with its nutritional versatility and genome plasticity, along with a multitude of intrinsic and acquired resistance mechanisms make it one of the most notorious pathogens of critical clinical importance. Efforts for finding perturbants capable of targeting the P. aeruginosa pathogenicity and antibiotic resistance are highly desired (9).

We had previously studied the anti-virulence effect of certain polyherbal formulations against S. aureus or P. aeruginosa at the whole transcriptome level of the target pathogen, wherein we gained some insight into the molecular mechanisms associated with the virulence-attenuating potential of the test formulations, which was largely independent of any growth-inhibitory effect. Pathogens exposed to the test formulations were compromised in their ability to kill the model host Caenorhabditis elegans. The current study attempted network analysis of the differentially expressed genes (DEG) of P. aeruginosa and S. aureus exposed to the anti-pathogenic polyherbal formulations Panchvalkal (10) and Herboheal (11), respectively, reported in the previous studies, with an aim to identify highly networked genes as potential anti-virulence targets. Panchvalkal is a mixture of bark extracts of five different plants – Ficus benghalensis, Ficus religiosa, Ficus racemosa, Ficus lacor, and Albizia lebbeck. Herboheal comprised of extracts of six different plants. Its full composition can be seen at: https://downloads.hindawi.com/journals/aps/2019/1739868.f1.pdf

Methods

Nitrite estimation

Nitrite estimation in P. aeruginosa culture supernatant was done through Griess assay (14). P. aeruginosa strain studied by us is a multidrug-resistant strain, which is resistant to ampicillin (10 µg), augmentin (30 µg), nitrofurantoin (300 µg), clindamycin (2 µg), chloramphenicol (30 µg), cefixime (5 µg), and vancomycin (30 µg). This bacterium was grown in Pseudomonas broth (HiMedia, Mumbai) with or without Panchvalkal (547 μg/mL; dried extract powder without any bulking agent was procured from Dr. Palep’s Medical Education and Research Foundation Pvt. Ltd., Mumbai, India, and dissolved in dimethylsulfoxide (DMSO) for assay purpose) at 35°C for 21±1 hour. Following incubation, cell density was quantified at 764 nm (15), and then the bacterial culture suspension was centrifuged at 13,600 g for 10 minutes. Resulting supernatant was mixed with Griess reagent (Sigma-Aldrich) in 1:1 ratio and incubated for 15 minutes in the dark at room temperature. Absorbance of the resulting pink color was quantified at 540 nm (Agilent Technology Cary 60 UV-Vis). These optical density (OD) values were plotted on standard curve prepared using NaNO₂ to calculate the nitrite concentration. To nullify any effect of variation in cell density between control and experimental culture, nitrite unit (i.e., nitrite produced per unit of growth) was calculated by dividing the nitrite concentration values by cell density. Sodium nitroprusside (Astron chemicals, Ahmedabad) being a chemical known to be capable of generating nitrosative stress in bacteria (16,17,18) was used as a positive control. Appropriate vehicle control (i.e., bacteria grown in the presence of 0.5% v/v DMSO (Merck)), negative control (deionized water), and abiotic control (Panchvalkal-supplemented Pseudomonas broth) were included in the experiment. Griess reagent was added in all these controls in the same proportion as that in extract-exposed or not-exposed bacterial culture samples.

Results

Network analysis of DEG in Panchvalkal-exposed P. aeruginosa

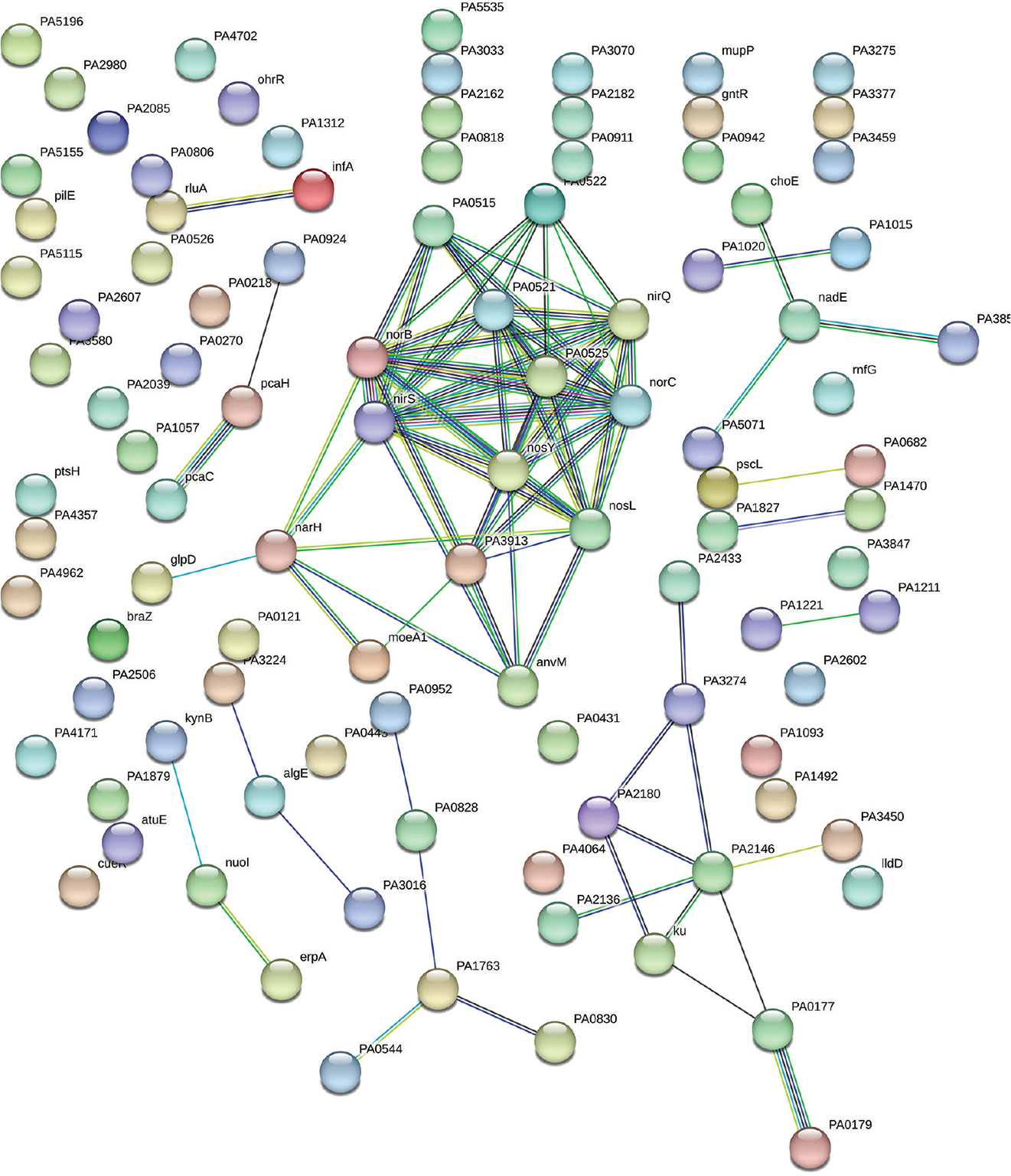

Our original experimental study exposed P. aeruginosa to Panchvalkal at 567 μg/mL, wherein the extract-exposed pathogen could kill 90% lesser host worms than its extract-not-exposed counterpart. Whole transcriptome study revealed that approximately 14% of the P. aeruginosa genome was expressed differently under the influence of Panchvalkal. The total number of DEG satisfying the dual criteria of log fold change ≥2 and FDR ≤0.01 was 228, of which 105 were downregulated (Tab. S1) and 123 were upregulated (Tab. S4). We created PPI network for up- and downregulated genes separately (Figs. 5 and 2, respectively). PPI network for downregulated genes generated through STRING is presented in Figure 2, which shows 101 nodes connected (105 genes were fed to string, out of which 101 were shown in the PPI network) through 86 edges with an average node degree of 1.7. Since the number of edges (86) in this PPI network is 3.18-fold higher than expected (27) with a PPI enrichment p value <1.0e-16, this network can be said to possess significantly more interactions among the member proteins than what can be expected for a random set of proteins of identical sample size and degree distribution. Such an enrichment can be taken as an indication of the member proteins being at least partially biologically connected. When we arranged the 105 downregulated genes in decreasing order of node degree, 52 nodes were found to have a nonzero score (Tab. S2), and we selected top 13 genes with a node degree ≥6 for further ranking by different cytoHubba methods. Then we looked for genes which appeared among the top-10 ranked candidates by ≥6 cytoHubba methods, and 10 such shortlisted genes (Tab. S3) were further checked for interactions among themselves followed by cluster analysis (Fig. 3), which showed them to be strongly networked as the average node degree score was 8. This network possessed 40 edges as against expected (zero) for any such random set of proteins (PPI enrichment p value <1.0e-16). The PPI network generated through STRING showed these 10 important genes to be distributed among three different local network clusters. Five (norB, norC, norD, nirS, and nirQ) of the predicted hubs were part of each of the three clusters, and they have a role in denitrification (19). Of the remaining five predicted hub proteins, one more (norE) is also associated with nitrogen metabolism, and two (nosL and nosY) have a role in denitrification as well as copper homeostasis. These three proteins were members of two out of three clusters. The eight proteins (Tab. I) found to be members of minimum two clusters can be said to be potential hubs, whose downregulation can be hypothesized to attenuate P. aeruginosa virulence.

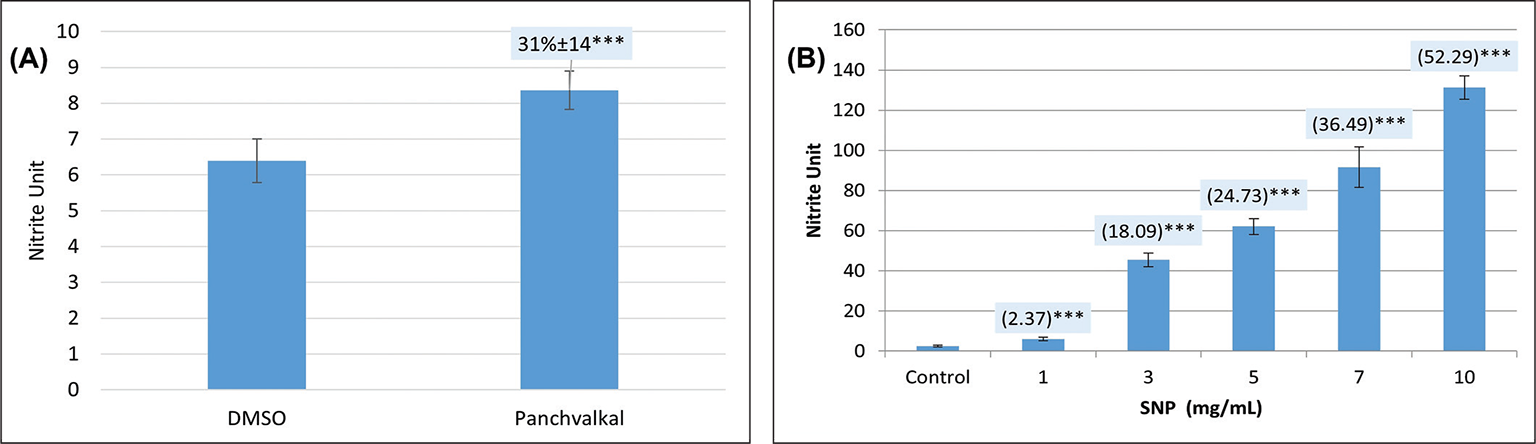

Since all the targets mentioned in Table I are known to play an important role in P. aeruginosa with respect to detoxification of reactive nitrogen species, we hypothesized that Panchvalkal-treated P. aeruginosa’s ability to detoxify reactive nitrogen species is compromised. To check this hypothesis, we quantified nitrite concentration in extract-treated P. aeruginosa culture, wherein it was found to have 31% higher nitrite concentration in supernatant as compared to control (Fig. 4). This higher accumulation of nitrite can be taken as an indication of compromised denitrification efficiency as nitrite is an intermediate of denitrification pathway (22).

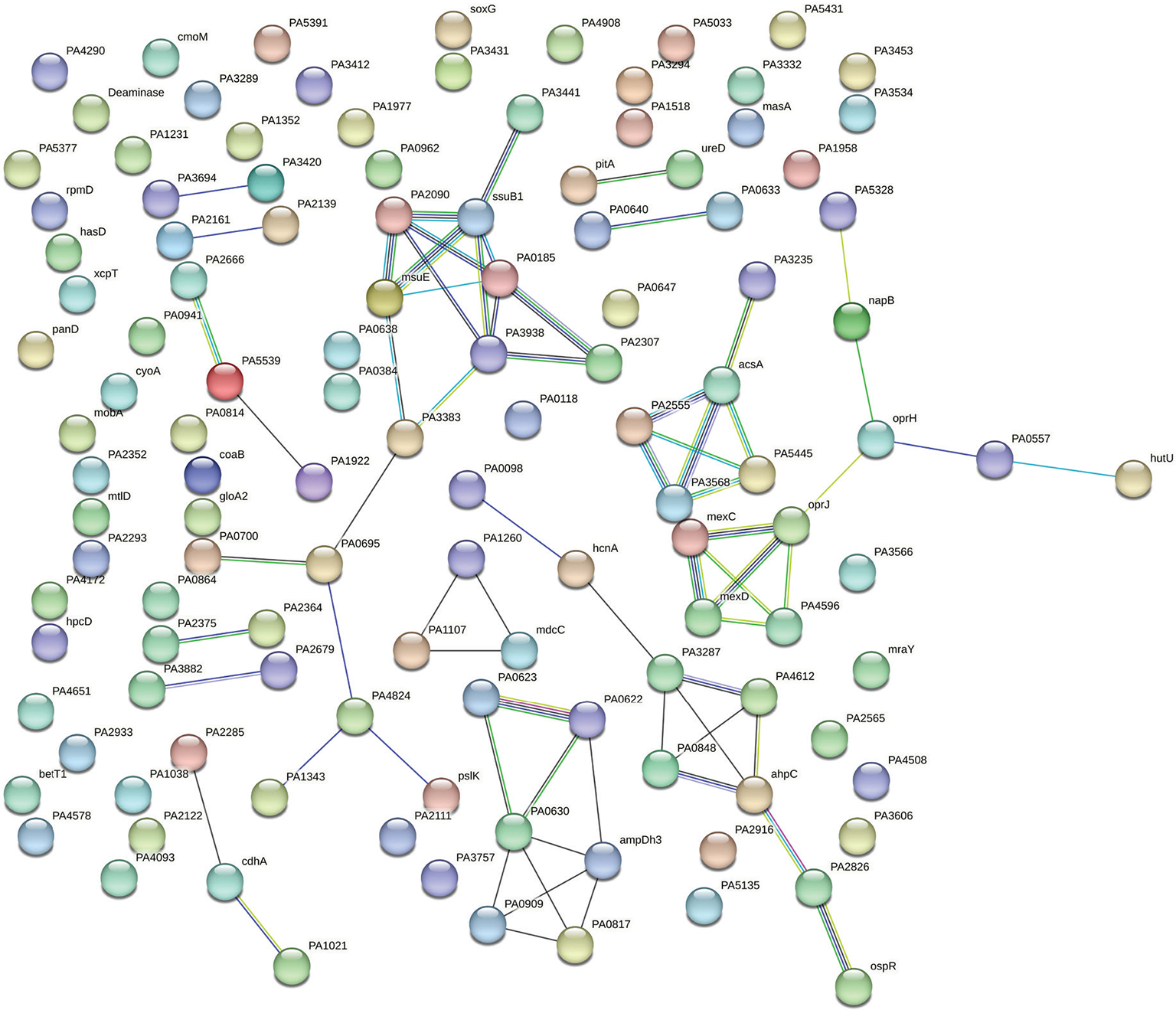

PPI network for upregulated genes in Panchvalkal-exposed P. aeruginosa generated through STRING is presented in Figure 5, which shows 121 nodes connected through 70 edges with an average node degree of 1.16. Though empirically the centrality of the upregulated genes appeared to be lesser than those downregulated in Panchvalkal-exposed P. aeruginosa, since the number of edges (70) in this PPI network is 1.89-fold higher than expected (37) with a PPI enrichment p value of 1.27e-06, this network can be said to possess significantly more interactions among the member proteins than what can be expected for a random set of proteins of this much sample size and degree distribution. Such an enrichment can be taken as an indication of the member proteins being at least partially biologically connected. When we arranged the 121 upregulated genes in decreasing order of node degree, 62 nodes were found to have a nonzero score, and we selected the top 26 genes with a node degree ≥3 (Tab. S5) for further ranking by different cytoHubba methods. Then we looked for genes which appeared among top-ranked candidates by ≥6 cytoHubba methods, and 14 such genes (Tab. S6) were identified for further cluster analysis. Interaction map of these 14 important genes (Fig. 6) showed them to be networked with the average node degree score of 2.29. Number of edges possessed by this network was 16 as against expected 1 for any such random set of proteins. These 14 genes were found to be distributed among five different local network clusters. Strength score for each of these clusters was >1.5. While three of the proteins (atsB, msuE, and ssuB1) were common members of three different clusters, one gene (tauA) appeared in two clusters. All these four highly networked upregulated genes (Tab. II) are involved in sulfur metabolism in P. aeruginosa (23). Hence it may be speculated that Panchvalkal has induced sulfur starvation in P. aeruginosa, to overcome which the pathogen is forced to upregulate genes involved in sulfur transport and metabolism.

No.	Gene ID	Gene name	Functional role
1	PA0520	nirQ	Denitrification regulatory protein NirQ
2	PA0519	nirS	Heme d1 biosynthesis protein, which is important for denitrification (20)
3	PA0524	norB	Nitric oxide reductase subunit B
4	PA0523	norC	Nitric oxide reductase subunit C
5	PA0525	NorD	Nitric oxide reductase NorD protein
6	PA0521	NorE	Nitric oxide reductase NorE protein
7	PA3395	nosY	Nitrous oxide reductase; a Cu-processing system permease protein having role in denitrification pathway (21)
8	PA3396	nosL	A lipoprotein attached to the outer membrane described as a copper-binding protein. Regulator of nos operon, NosR also associates with NosL. This protein is probably responsible for the insertion and coordination of the multicopper center within NosZ (22).

Network analysis of DEG in Herboheal-exposed S. aureus

Herboheal is a folk-inspired wound-healing formulation, and we had earlier demonstrated its anti-virulence potential against multiple bacterial pathogens including S. aureus. Pretreatment of S. aureus with Herboheal (0.1% v/v) could attenuate its virulence toward the surrogate host C. elegans by 55%. This concentration had a moderate growth-inhibitory effect (32%) on S. aureus, while heavily inhibiting staphyloxanthin production (79%). Whole transcriptome study revealed that approximately 17% of the S. aureus genome was expressed differently under the influence of Herboheal. The total number of DEG satisfying the dual criteria of log fold change ≥2 and FDR ≤0.01 was 113, of which 57 were upregulated and 56 were downregulated (Tab. S7). Since the number of genes amenable to mapping by STRING turned out to be only 28 of these 113, we went for a combined PPI network (Fig. 7) of all these DEG instead of preparing separate PPI map of upregulated or downregulated genes. The said PPI network had 28 nodes connected through 36 edges with an average node degree of 2.57. Since the number of edges (36) in this PPI network is threefold higher than expected (12) with a PPI enrichment p value of 1.02e-08, this network can be said to possess significantly more interactions among the member proteins than what can be expected for a random set of proteins having identical sample size and degree distribution. Such an enrichment is suggestive of the member proteins being at least partially biologically connected.

No.	Gene ID/name	Codes for	Remarks
1	PA2357/msuE (slfA)	FMN reductase	Involved in riboflavin metabolism and sulfur metabolism pathways
2	PA3442/ssub1	Aliphatic sulfonates import ATP-binding protein SsuB 1	Aliphatic sulfonates import ATP-binding protein SsuB 1; part of the ABC transporter complex SsuABC involved in aliphatic sulfonate import. Responsible for energy coupling to the transport system
3	PA0185/atsB	Serine-modifying enzyme (24); probable permease of ABC transporter	atsB is a member of a cys regulon in P. aeruginosa, which constitutes a general sulfate ester transport system (25)
4	PA3938/tauA	TauA (sulfonate transport system ATP-binding protein)	This probable periplasmic taurine-binding protein precursor is part of tau operon involved in sulfur metabolism

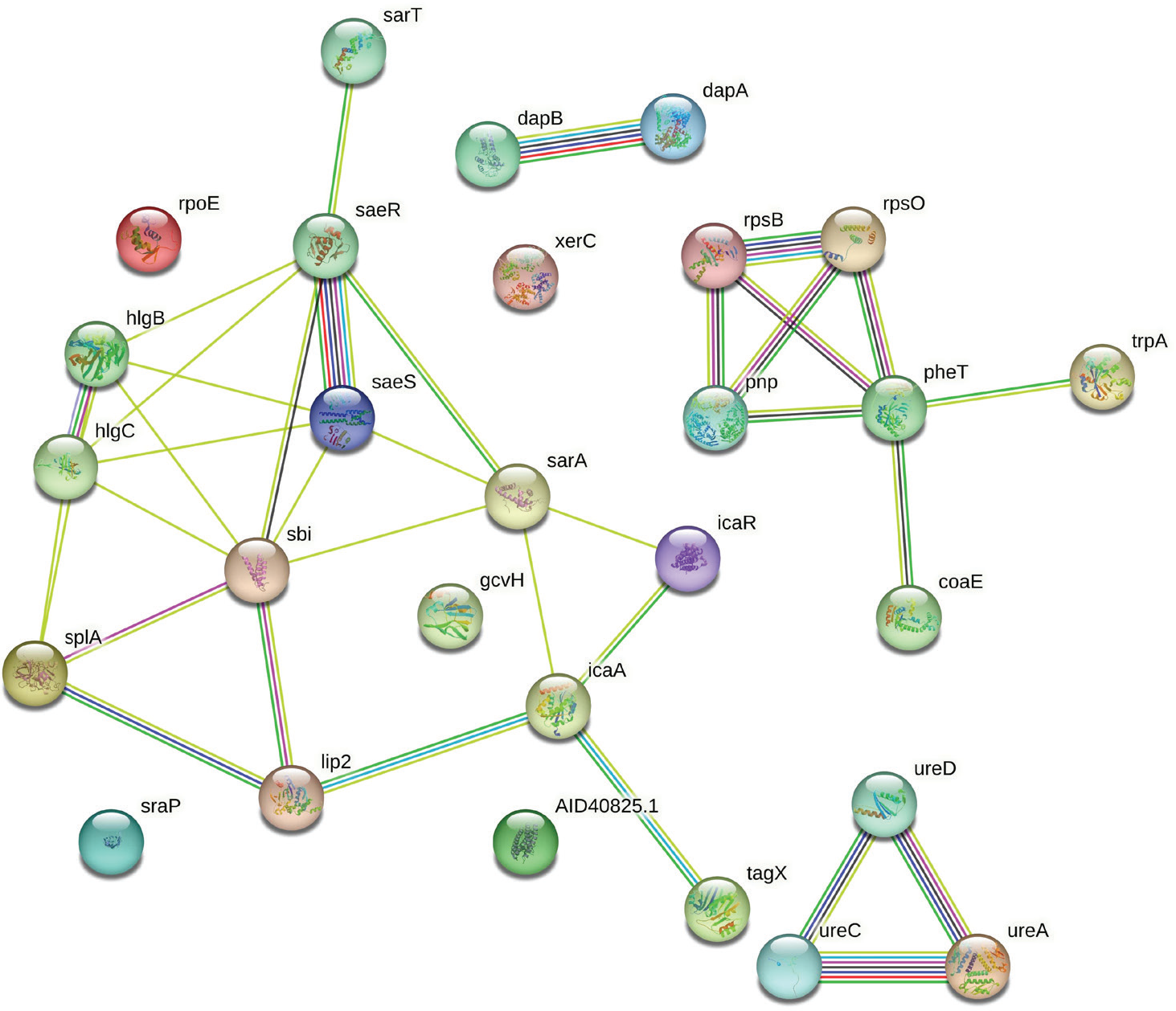

When we arranged all the 28 nodes in decreasing order of node degree, 23 nodes were found to have a nonzero score, and we selected the top 13 genes with a node degree ≥3 (Tab. S8) for further ranking by different cytoHubba methods. Then we looked for genes which appeared among top-ranked candidates by ≥6 cytoHubba methods. Of such 12 genes, 8 (Tab. S9) which were ranked among top 10 by ≥11 cytoHubba methods were taken for further cluster analysis. Interaction map of these eight important genes (Fig. 8) showed them to be networked with the average node degree score of 4. Number of edges possessed by this network was 16 as against expected 1 for any such random set of proteins. These eight genes were found to be distributed among three different local network clusters. Strength score for each of these clusters was >1.46. While three of the proteins (sarA, sbi, and splA) were common members of two different clusters, four proteins were part of any one cluster, while pnp was not shown to be connected to the remaining seven genes. Since in case of S. aureus, we analyzed up- and downregulated genes together, instead of considering only the multi-cluster proteins as hubs, we took all of those which appeared to be part of PPI network as shown in Figure 7. Functions of these seven potential hubs are listed in Table III.

No.	Gene ID	Gene name	Codes for	Function
1	SAXN108_0683	sarA	Transcriptional regulator SarA	Probably activates the development of biofilm by both enhancing the ica operon transcription and suppressing the transcription of either a protein involved in the turnover of PIA/PNAG or a repressor of its synthesis, whose expression would be sigma-B-dependent
2	SAXN108_2673	sbi	Immunoglobulin-binding protein Sbi	Plays a role in the inhibition of both the innate and adaptive immune responses
3	SAXN108_1846	splA	Serine protease SplA	Poorly characterized secreted protein probably involved in virulence
4	SAXN108_0774	saeR	Response regulator transcription factor SaeR	The saeR/S system plays a role in regulating such virulence factors which decrease neutrophil hydrogen peroxide and hypochlorous acid production following S. aureus phagocytosis
5	SAXN108_0773	saeS	Histidine kinase
6	SAXN108_2677	hlgB	Gamma-hemolysin component B precursor	Toxins that seem to act by forming pores in the membrane of the cell; has a hemolytic and a leukotoxic activity
7	SAXN108_2676	hlgC	Gamma-hemolysin component C precursor

PIA = polysaccharide intercellular adhesin; PNAG = poly-N-acetyl-β-(1-6)-glucosamine.

Discussion

Panchvalkal-exposed P. aeruginosa appears to suffer from sulfur starvation and nitrosative stress. Compromised nitric oxide (NO) detoxification can render bacteria more susceptible to the NO produced by the host immune system (19). Mutant P. aeruginosa deficient in NO reductase was shown to register a reduced survival rate in NO-producing macrophages (26). NO has a strategic role in the metabolism of microorganisms in natural environments and also during host-pathogen interactions. NO as a signaling molecule is able to influence group behavior in microorganisms. Downregulation of the denitrification pathway can disturb the homeostasis of the bacterial biofilms. NO levels can also affect motility, attachment, and group behavior in bacteria by affecting various signaling pathways involved in the metabolism of 3ʹ,5ʹ-cyclic diguanylic acid (c-di-GMP). Suppressing bacterial detoxification of NO can be an effective anti-pathogenic strategy, as NO is known to modulate several aspects of bacterial physiology, including protection from oxidative stress and antimicrobials, homeostasis of the bacterial biofilm, etc. (27,28,29). From this in silico exercise, nitric oxide reductase (NOR) has emerged as the most important target of Panchvalkal in P. aeruginosa. NOR is one of the important detoxifying enzymes of this pathogen, which is crucial to its ability to withstand nitrosative stress, and has also been reported to be important for virulence expression of this pathogen, and thus can be a plausible potential target for novel anti-virulence agents (19). NOR inhibitors can be expected to compromise the pathogen’s ability to detoxify nitric oxide (NO), not allowing its virulence traits (e.g., biofilm formation, as NO has been indicated to act as a biofilm-dispersal signal) to be expressed fully. NOR inhibitors can be expected to be effective not only against P. aeruginosa but against multiple other pathogens too, as NO is reported to be perceived as a dispersal signal by various gram-negative and gram-positive bacteria (30). This is to say, NOR inhibitors may be expected to have broad-spectrum activity against multiple pathogens. Major function of NOR is to detoxify NO generated by nitrite reductase (NIR). NO is a toxic byproduct of anaerobic respiration in P. aeruginosa. NO-derived nitrosative species can damage DNA and compromise protein function. Intracellular accumulation of NO is likely to be lethal for the pathogen. It can be logically anticipated that P. aeruginosa’s ability to detoxify NO will be compromised under the influence of potent NOR inhibitors like Panchvalkal. Since NO seems to have a broad-spectrum anti-biofilm effect, NOR activity is essential for effective biofilm formation by the pathogens. NOR activity and NO concentration can modulate cellular levels of c-di-GMP, which is a secondary messenger molecule recognized as a key bacterial regulator of multiple processes such as virulence, differentiation, and biofilm formation (31). In the mammalian pathogens, the host’s macrophages are a likely source of NO. NOR expressed by the pathogen provides protection against the host defense mechanism (26). Since NOR activity is known to be important in multiple pathogenic bacteria (e.g., P. aeruginosa, S. aureus, Serratia marcescens) for biofilm formation, virulence expression, combating nitrosative stress, and evading hose defense, NOR seems to be an important target for novel broad-spectrum anti-pathogenic agents. A potential NOR inhibitor besides troubling the pathogen directly may also boost its clearance by the host macrophages (32).

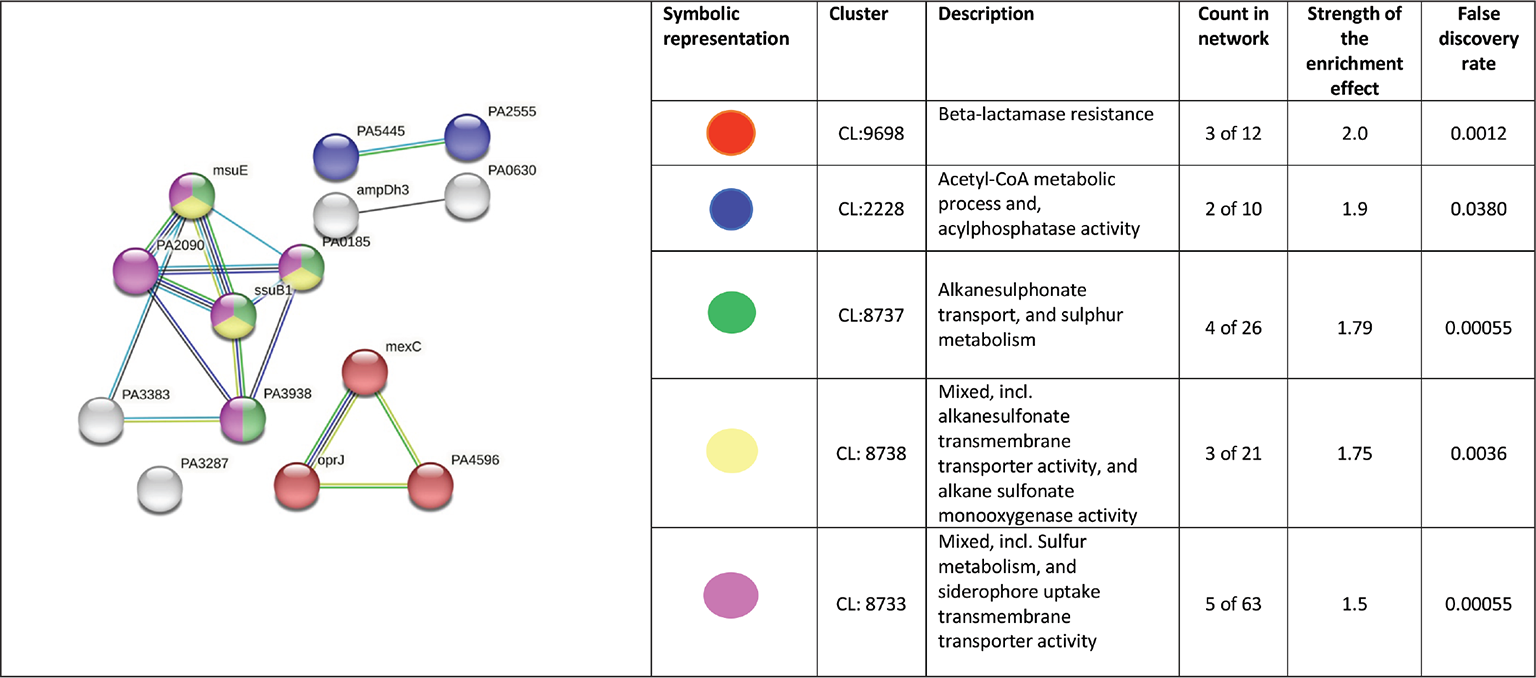

Based on the analysis of differently expressed upregulated genes, sulfur-starved culture of P. aeruginosa can be expected to experience compromised virulence. Upregulation of organic sulfur transport and metabolism genes has been reported in P. aeruginosa facing sodium hypochlorite-induced oxidative stress (33). Two of the upregulated hubs mentioned in Table II are part of tau or ssu gene clusters, which are reported in gram-negative bacteria like Escherichia coli too for being necessary for the utilization of taurine and alkane sulfonates as sulfur sources. Since these genes are exclusively expressed under conditions of sulfate or cysteine starvation (34), one of the multiple effects exerted by Panchvalkal on P. aeruginosa can be said to be sulfur starvation. Upregulation of n-alkane sulfonates or taurine (sources of carbon and organic sulfur) utilization genes in P. aeruginosa suggests that the sulfur in these compounds was used to counter Panchvalkal-induced sulfur starvation, and that the neutrophilic amines and alpha-amino acids formed by catabolization of n-alkane sulfonates may guard the cell against oxidative stress (35). Thus, depriving P. aeruginosa of sulfur can be viewed as a potential anti-virulence strategy.

Among the potential targets identified in S. aureus in this study, first we discuss two such downregulated genes which are common members of two different clusters. Of them, splA is a serine protease, exclusively specific to S. aureus, and thought to have a role in the second invasive stage of the infection (36). Another potential hub sbi is an IgG-binding protein, which has a role in the inhibition of the innate as well as adaptive immune responses. Its secreted form acts as a potent complement inhibitor of the alternative pathway-mediated lysis. sbi helps mediate bacterial evasion of complement via a mechanism called futile fluid-phase consumption (37). Among the remaining potential hubs listed in Table III, SaeR/S two-component system is recognized as a major contributor to S. aureus pathogenesis and neutrophil evasion. SaeR/S also plays a role in regulating such virulence factors which decrease neutrophil hydrogen peroxide and hypochlorous acid production following S. aureus phagocytosis (38). S. aureus escapes from the antimicrobial protein’s neutrophil extracellular traps (NETs), which is dependent on its secreting nuclease (nuc), and the latter in turn is regulated by SaeR/S. The SaeR/S system also modulates neutrophil fate by inhibiting interleukin (IL)-8 production and nuclear factor (NF)-κB activation. SaeR/S deletion mutant of S. aureus was shown to be inferior than its wild-type counterpart in causing programmed neutrophil death (39). The SaeR/S system regulates expression of many important virulence factors in S. aureus, and some of them do appear in our list of important targets such as sbi, hlgB, and hlgC. Thus, inhibiting SaeR/S from sensing its environment can be expected to prevent expression of a multitude of S. aureus virulence factors in response to host signals. hlgB and hlgC are hemolytic proteins, and such proteins are used by many pathogens to fulfill their iron requirement as the concentration of free iron in human serum is much lesser than that required by the bacteria (40). Downregulation of bacterial hemolytic machinery may push them toward iron starvation, thus compromising their fitness for in-host survival. This corroborates well with our earlier report (11) describing reduced hemolytic potential of S. aureus under the influence of Herboheal. Among all the potential hubs identified in Herboheal-exposed S. aureus, only one (sarA) was upregulated, and its upregulation seems to be a response from S. aureus to compensate the Herboheal-induced downregulation of many important virulence traits. For example, sarA regulates expression of ica operon, which is required for biofilm formation in S. aureus. It can be said that S. aureus’s ability to adhere to surfaces and biofilm formation was compromised in the presence of Herboheal as suggested by downregulation of adhesion/biofilm-relevant genes (SaeR/S and sarA), and as an adaptation to such challenge the pathogen is trying to upregulate SarA. This corroborates well with our previous report describing 56% reduced biofilm formation by S. aureus in the presence of Herboheal (11).

This study has identified certain potential hubs in P. aeruginosa (Tabs. I and II) and S. aureus (Tab. III) which should further be investigated for their candidature as potential anti-pathogenic targets. The most suitable targets in bacterial pathogens would be the ones which are absent from their host, as this will allow the criteria of selective toxicity to be satisfied for a newly discovered drug. We did a gene co-occurrence pattern analysis of gene families across genomes (through STRING) with respect to the major hubs identified in each of the pathogens (Tab. IV). Of the 19 hubs identified in either of the pathogen, none was shown to be present in Homo sapiens, and hence drugs causing dysregulation of one or more of these genes in pathogens are less likely to be toxic to humans.

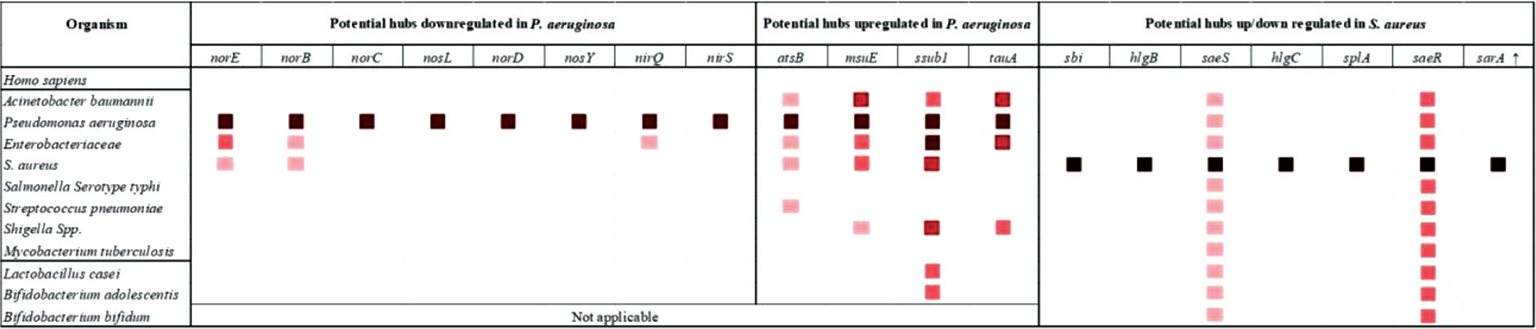

If any target gene is present among multiple pathogens, then it can be considered suitable for a broad-spectrum antibacterial. We analyzed the co-occurrence of identified hubs among some of the important pathogens listed by CDC and WHO. From among those listed in Table IV, atsB, msuE, ssub1, norE, and norB seemed to be present in multiple gram-negative as well as gram-positive pathogens, and thus suitable to be targeted by a broad-spectrum anti-pathogenic discovery program. On the other hand, tauA and nirQ seemed to be present only among gram-negative pathogens. They can prove to be important targets in light of the fact that discovery of novel antimicrobials against gram-negative bacteria is relatively more challenging (41).

The darker the shade of the squares, higher is the homology between the genes being compared.

One of the issues with conventional antibiotics is that they cannot differentiate between the ‘good’ (symbionts in human microbiome) and ‘bad’ (pathogens) bacteria, and hence their consumption may lead to gut dysbiosis. An ideal antimicrobial agent should target pathogens exclusively without causing gut dysbiosis. In this respect, a target in pathogenic bacteria absent from symbionts of human microbiome will be the most suitable candidate for antibiotic discovery programs. To gain some insight on this front regarding the targets identified by us, we run a gene co-occurrence analysis with some representative ‘good’ bacteria reported to be part of healthy human microbiome. Bifidobacterium species showed presence of no other target except SaeR/S. SaeR/S being widely distributed among bacteria can be considered a valid target; however, an antibacterial agent targeting it may lead to gut dysbiosis too. All downregulated targets in P. aeruginosa were absent from the selected symbionts, which further adds value to their potential candidature as anti-virulence targets. However, atsB and ssub1 appeared to be present in Lactobacillus casei.

Conclusion

This study has identified certain potential targets in two important pathogens. Such in silico studies being predictive in nature, further work is warranted on wet-lab validation of the identified targets. Deletion mutants of the identified hub genes should be assessed for their expected attenuated virulence in appropriate host models. Next-generation pathoblockers targeting any one of these genes may not always be effective as stand-alone therapeutic, and simultaneous targeting of more than one of these genes may be required for an effective therapy. They can also prove to be useful adjuvants to conventional antibiotics allowing use of bactericidal antibiotics at lower concentrations.

Besides indicating generation of nitrosative stress, inducing sulfur starvation, and disturbing regulation of bacterial virulence as potentially effective anti-pathogenic strategies, this study also demonstrates the relevance of the polyherbalism concept of the Traditional Medicine systems, and utility of the network analysis approach in elucidating the multiple modes of anti-pathogenic action exerted by the multicomponent natural extracts.

Acknowledgments

The authors thank Nirma Education and Research Foundation (NERF), Ahmedabad, for infrastructural support; Dr. Palep’s Medical Education and Research Foundation for providing Panchvalkal extract; Pooja Patel and Chinmayi Joshi for help with mining raw data.

Abbreviations

AMR = antimicrobial resistance; DEG = differentially expressed genes; NO = nitric oxide; NOR = nitric oxide reductase; PPI = protein-protein interaction

Disclosures

Conflict of interest: The authors declare no conflict of interest.

Financial support: This research received no specific grant from any funding agency in the public, commercial, or not-for-profit sectors.

Author’s contribution: Conceptualization: VK; Data Curation: FR, SS, JP, NT, GG; Formal Analysis: FR, SS, JP, NT, GG, VK; Funding Acquisition: VK; Investigation: FR, SS, JP, NT, GG; Methodology: VK, GG, NT; Project Administration: VK; Resources: VK; Supervision: VK; Writing – Original Draft: VK, FR; Writing – Review & Editing: VK, GG, NT.
